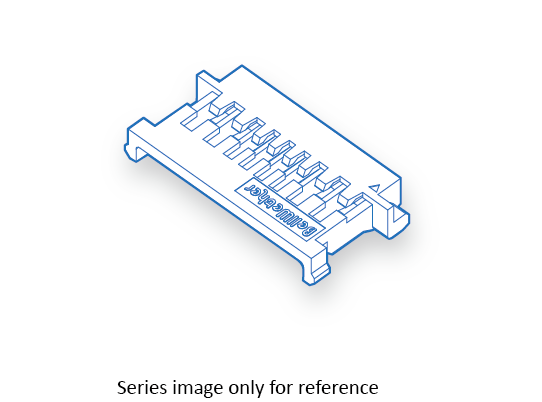

80189-4400

Power & Signal

thông số kỹ thuật sản phẩm
Type	Housing
Pitch (Power/Signal)	1.5mm/1.0mm
Circuit (Power/Signal)	4/4
Current (Power/Signal)	4.0A/1.8A
Operating Voltage (Power/Signal)	30V/30V
Mating Height	2.0mm
Fitting Nail Length	-
Durability	30 Cycles
Flammability	UL-94_V0
Mating Terminal Material	Copper Alloy
Housing Material	High Temperature Thermoplastic
Operating Temperature	-25℃~85℃
Contact Resistance (Max.) (Power/Signal)	10 mΩ/20 mΩ
Withstanding Voltage (Power/Signal)	250V/250V
Insulation Resistance (Min.) (Power/Signal)	100 MΩ /100 MΩ
Mating series	80188 series

The values specified in this website are only for reference.
The products/specifications are subject to change without notice.
We strongly suggest you to contact our sales for further information when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability.
