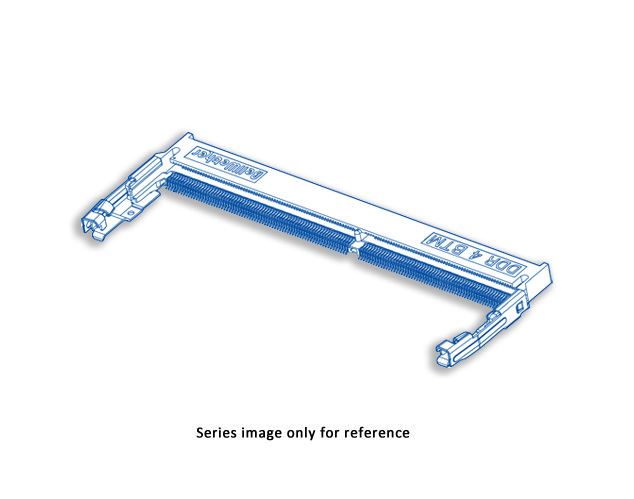

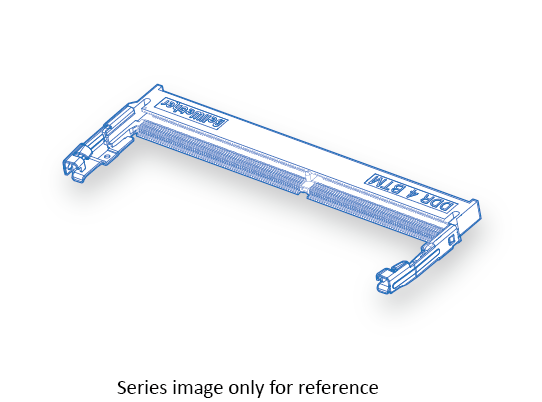

80886-112*

Contact Area Finish
‧ Gold Flash Over 50 Microinch/1.27 Micrometers Nickel
‧ 5 Microinch/0.127 Micrometers Gold Plated Over 50 Microinch/1.27 Micrometers Nickel
‧ 10 Microinch/0.254 Micrometers Gold Plated Over 50 Microinch/1.27 Micrometers Nickel
‧ 15 Microinch/0.381 Micrometers Gold Plated Over 50 Microinch/1.27 Micrometers Nickel
‧ 30 Microinch/0.762 Micrometers Gold Plated Over 50 Microinch/1.27 Micrometers Nickel
產品詢問
產品規格
Mounting Type Reverse Type
Pitch 0.5mm
Circuit 260
Current 0.5
Operating Voltage 20mV
Total Height 4.0mm
Durability 30 cycles
Terminal Material Copper Alloy
Housing Material High Temperature Thermoplastic
Operating Temperature -40℃~85℃
Contact Resistance (Max) 40 mΩ
Withstanding Voltage 500V
Insulation Resistance (Min) 250 MΩ
技術文件
3D File 會員登入
2D File
Specification
Package Spec

更多資訊

  1. The values specified in this website are only for reference.
    The products/specifications are subject to change without notice.
  2. We strongly suggest you to contact our sales for further information when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability.
