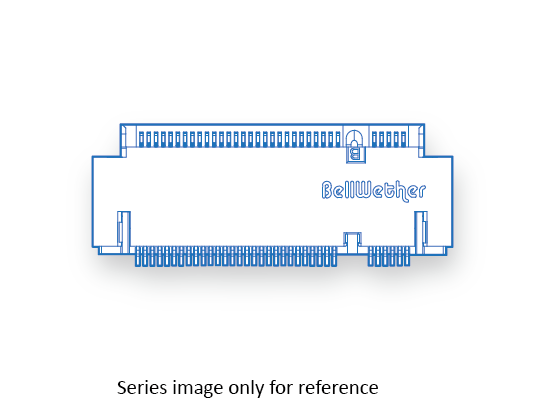

80149-178*

* Contact Plating
1=Gold Flash
2=Gold Plated, 5u”
3=Gold Plated, 10u”
4=Gold Plated, 15u”
5=Gold Plated, 30u”
產品詢問
產品規格
Pitch 0.5mm
Circuit 67
Current 0.5A
Operating Voltage 50V
Mechanical Key Way B
Center Heigh 0.05mm
DIP Pin Length 1.3mm
Durability 60 Times
Terminal Material Copper Alloy
Housing Material High Temperature Thermoplastic
Operating Temperature -40℃~80℃
Contact Resistance (Max.) 55 mΩ
Withstanding Voltage 300V
Insulation Resistance (Min.) 500 MΩ
技術文件
3D File 會員登入
2D File
Specification
Package Spec

更多資訊

  1. The values specified in this website are only for reference.
    The products/specifications are subject to change without notice.
  2. We strongly suggest you to contact our sales for further information when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability.
