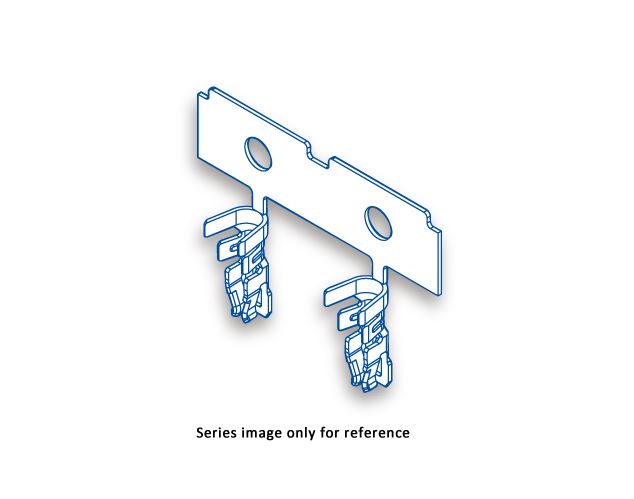

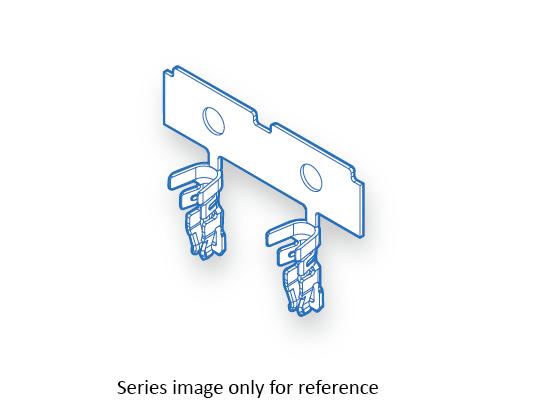

80190-102*

* Contact Plating
1=Gold Flash
2=Gold Plated, 5u”
3=Gold Plated, 10u”
4=Gold Plated, 15u”
5=Gold Plated, 30u”
7=Bright Tin
8=Matte Tin
產品詢問
產品規格
Type Power Terminal
Current Rating (Power/Signal) 4.5A/ -
Wire AWG (Power/Signal) 24~28/ -
Operating Voltage (Power/Signal) 30V/ -
Terminal Material Copper Alloy
Contact Resistance (Max.) (Power/Signal) 10 mΩ/ -
Insulation Resistance (Min.) (Power/Signal) 100 MΩ/ -
技術文件
3D File 會員登入
2D File
Specification
Package Spec

更多資訊

  1. The values specified in this website are only for reference.
    The products/specifications are subject to change without notice.
  2. We strongly suggest you to contact our sales for further information when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability.
