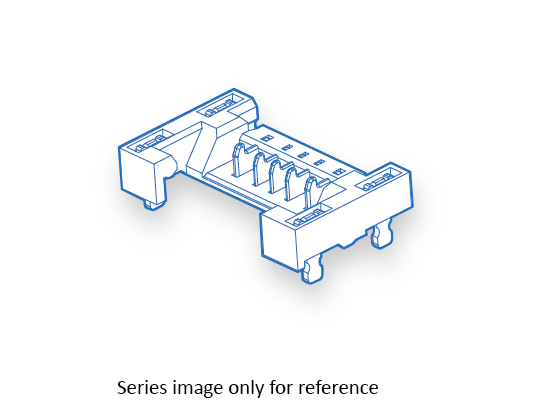

80188-232*

Power & Signal

* Contact Plating
1=Gold Flash
2=Gold Plated, 5u”
3=Gold Plated, 10u”
4=Gold Plated, 15u”
5=Gold Plated, 30u”
7=Bright Tin
8=Matte Tin
Product Inquiry
Product Specifications
Type Receptacle
Pitch (Power/Signal) 1.5mm/1.0mm
Circuit (Power/Signal) 2/3
Current (Power/Signal) 4.5A/2.0A
Operating Voltage (Power/Signal) 30V/30V
Mating Height 2.0mm
Durability 30 Cycles
Flammability UL-94_V0
Terminal Material Copper Alloy
Housing Material High Temperature Thermoplastic
Operating Temperature -25℃~85℃
Contact Resistance (Max.) (Power/Signal) 10 mΩ/20 mΩ
Withstanding Voltage (Power/Signal) 250V/250V
Insulation Resistance (Min.) (Power/Signal) 100 MΩ/100 MΩ
Mating series 80189 series
Fitting Nail Type DIP
Fitting Nail Length 1.20
Technical Resources
3D File Member login
2D File
Specification
Package Spec

More Information

  1. The values specified in this website are only for reference.
    The products/specifications are subject to change without notice.
  2. We stroungly suggest you to contact our sales for further information when considering use of any of the products in any other way than the recommended applications or for a specific use that requires an extremely high reliability.
